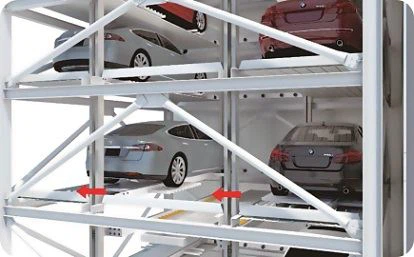

AGUSTIN PPY auto puzzle parking system working principle is: each parking space contains a car plate to reach the ground floor by lifting, lowering and sliding movement so that the driver is able to enter the garage and get access to the car. The top and the underground floor is full parking, only lifting movement is needed for them. The remaining floors are required to leave an empty shift for both sliding and lifting movement. The ground floor only have sliding movement. The only thing for user to do is to insert a card or push a button, and the whole process is automatically done by the controlling system.
Nodweddion:
Cynllun hyblyg, addasadwy (Gofyniad isel ar strwythur yr adeilad: gellir addasu'r cyfuniad a'r trefniant i dir a gofod penodol, sy'n berthnasol nid yn unig i faes parcio tanddaearol, ond hefyd i le parcio awyr agored gyda chanopïau gwrth ymylol, ffensys). , a chyfleusterau eraill i gynyddu'r estheteg);
Cydran strwythur dur, ymddangosiad syml a thrawsyriant syml;
Gweithrediad llyfn, diogel a dibynadwy;
Arbed ynni, diogelu'r amgylchedd, sŵn isel;
Low cost, easy installation, easy maintenance;
Sefydlu hyblyg, diwallu anghenion gwahanol gwsmeriaid;
Dyfais canfod diogelwch lluosog.
Manyleb Dechnegol System Parcio Pos Auto PPY:
| Math | T | D | |||||
| Maint y Car | L | Llai na neu'n hafal i 5300mm | Llai na neu'n hafal i 5000mm | ||||
| W | Llai na neu'n hafal i 1900mm | Llai na neu'n hafal i 1850mm | |||||
| H | Llai na neu'n hafal i 1550mm | Llai na neu'n hafal i 1550mm | |||||
| Pwysau | Llai na neu'n hafal i 2500kg | Llai na neu'n hafal i 1800kg | |||||
| Maint yr offer | Distance of booths in union | A | 2500mm | 2500mm | 2450mm | 2500mm | |
| Postlongitudinal spacing | B | 6200mm | 6200mm | 5900mm | 5900mm | ||
| Post blaen i fynd i mewn o bell | C | 1050mm | 1050mm | 915mm | 915mm | ||
| Hyd cyffredinol yr offer | B ynghyd â 310 | 6510mm | 6510mm | 6210mm | 6210mm | ||
| Lled cyffredinol yr offer | NA plws 270 | 12770mm | 13020mm | 12520mm | 12770 | ||
| Pellter colofn y ddwy ochr | NA | 12500mm | 12750mm | 12500mm | 12500mm | ||
| Pŵer modur | Tansverse | 0.2kw | |||||
| Codi a gostwng | 2.2kw | ||||||
| Cyflymder | Sliding cyflymder | 78m/munud | |||||
Lifingt Cyflymder | 45m/munud | ||||||
| Yr amser mynediad cyfartalog i gerbydau | Llai na neu hafal i 30s | ||||||
| Swn | Llai na neu'n hafal i 60dB | ||||||
| Control mode | Rheoli rhaglen PLC | ||||||
| Modd gweithredu | Button type, IC card (optional) | ||||||
| Cyflenwad Pŵer | System wifren 3phase 5 AC 380V 50Hz | ||||||
| Amser cludo car ar gyfartaledd | Llai na neu hafal i 50s | ||||||
